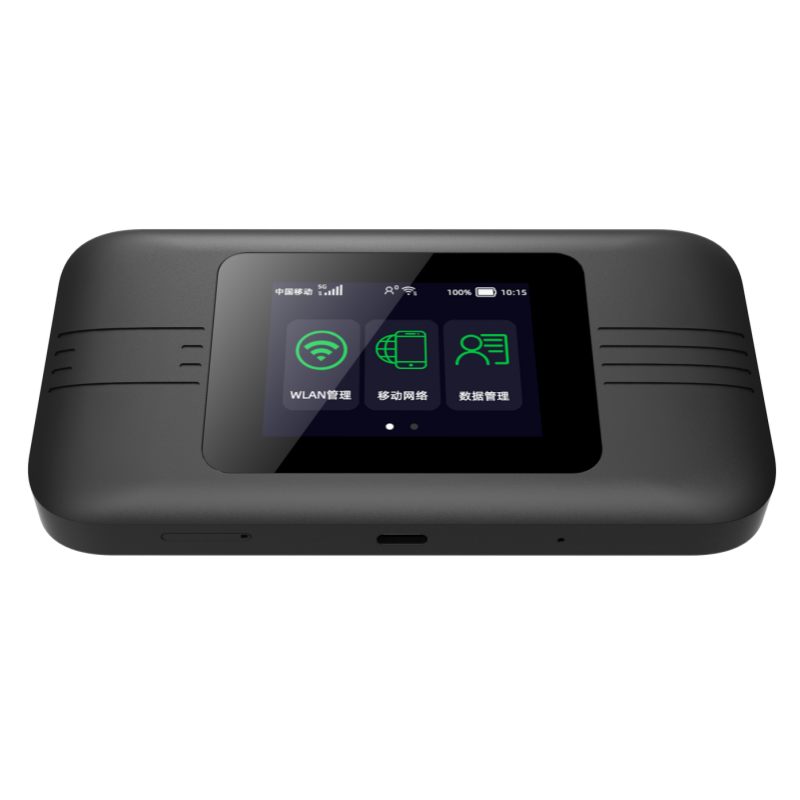

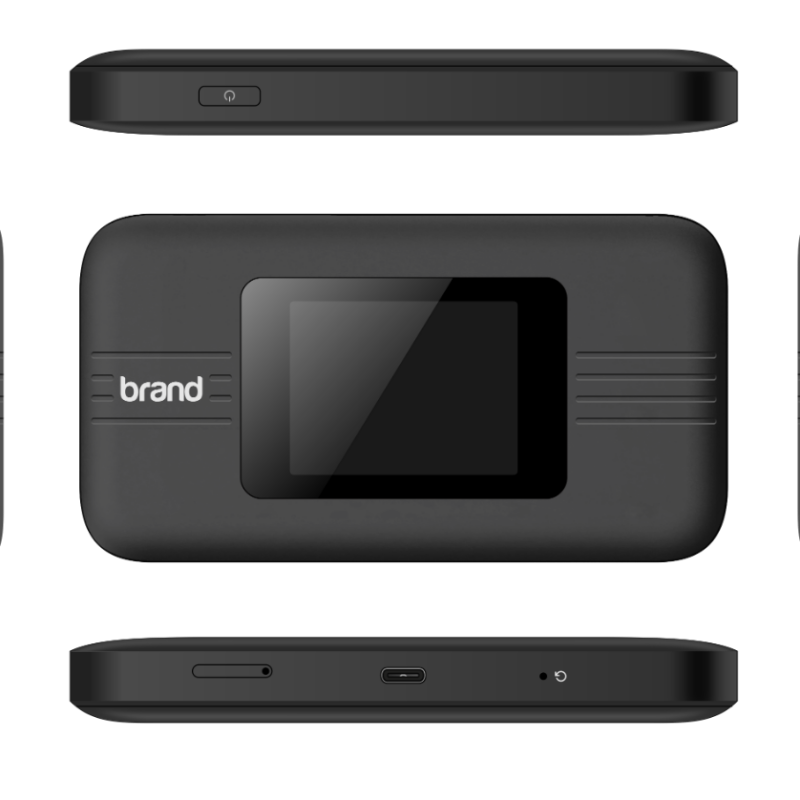

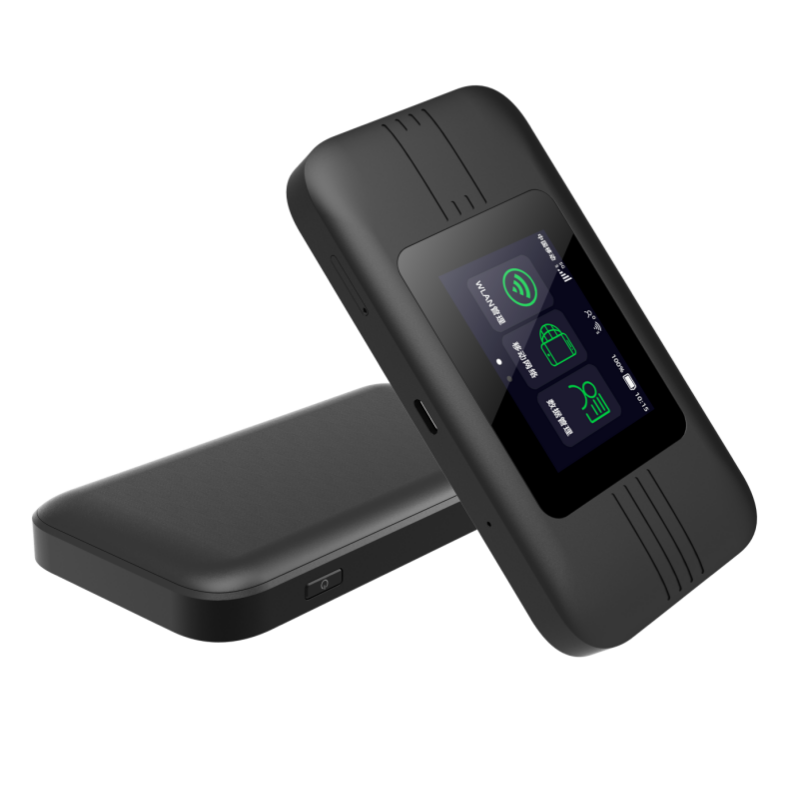

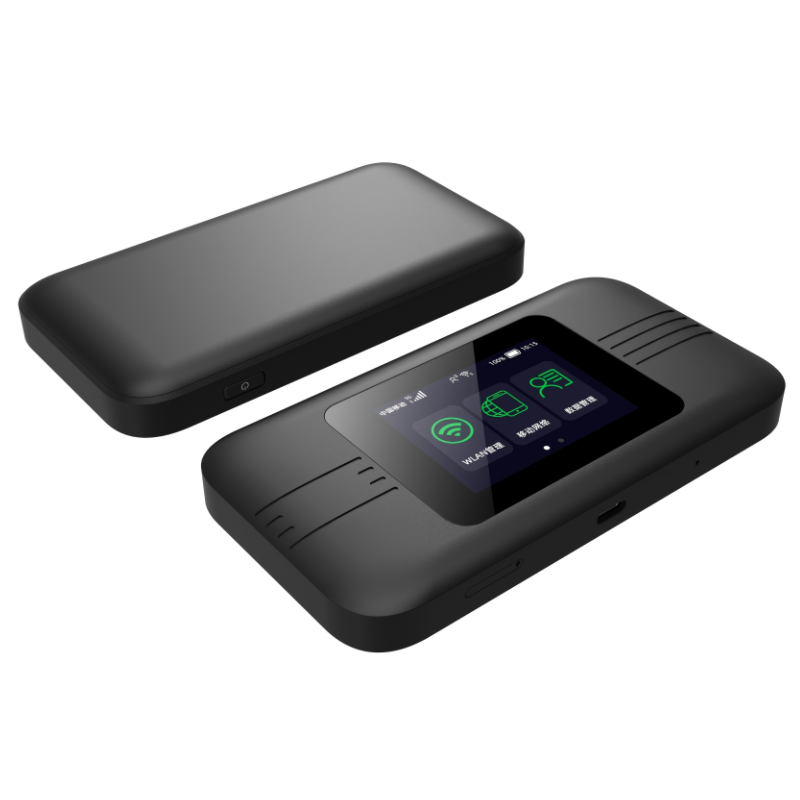

HL-875H is Qualcomm chipset 5G mobile WiFi support 2 pcs 5G internal antennas and 2 pcs WiFi internal antennas.
Pocket 5G high speed MiFi for business and entertainment.
Dual band 5G hotspot with high capacity 5000mAh battery.
| Item | Specification | |
| Basic Information | Form Factor | Mobile Wi-Fi |
| Product Name | HL-875H 5G MIFI | |
| Dimension | about 133.5*71*17mm | |
| Weight | about 200g | |
| Air interface | Technical Standard | Release 16 |
| Frequency | EA: 5G SA/NSA: N1/N3/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78 LTE: FDD: B1/B3//B7/B8/B20/B28 TDD: B38/B40/B41/B42/B43 |
|
| Wi-Fi | Protocol： 2.4GHz: 11b/g/n/ac/ax 2*2 5GHz: 11a/n/ac/ax 2*2 Channel： 2.4GHz: 1~13(Disable 1-4 channel if there has B40) 5GHz: CH36-CH64 CH100-CH140 Bandwidth： 2.4GHz: 20/40MHz 5GHz: 20/40/80MHz(160MHz) |
|
| Performance | Maximum Data Throughput | MAX DL 2.16Gbps MAX UL 900Mbps(120MH) 5G NR LTE ENDC: MAX DL 3.16Gbps MAX UL 550Mbps 4G: MAX DL 1.6Gbps MAX UL 200Mbps Wi-Fi： 2.4GHz MAX 574Mbps 5GHz MAX 1201Mbps(2402Mbps) |
| Hardware Specification | Receive Diversity | Support |
| RF Chipset | Qualcomm Dual SDR735 | |
| BB Chipset | Qualcomm SDX62 | |
| Wi-Fi Chipset | QCA2064 | |
| Memory | 8Gb+8Gb | |
| USB Charging | Type-C | |
| Battery | Li-ion Battery 5000mAh | |
| LCD | TFT LCD, 2.4inch touch screen | |
| Antenna | Default Internal Antenna, total 9:4G/5G x 7, Wi-Fi x 2 | |
| Buttons | POWER, Reset | |
| ESD | ESD Protection circuit；Contact±8KV, Air±10KV | |
| Softwsre | SW Update | Local Update, Fota |
| Wi-Fi Security | OPEN & WPA2-PSK & WPA-PSK/WPA2-PSK & WPA3 | |
| IPv4/IPv6 | Support | |
| Firewall | Mac/IP address fifilter, Port forwarding, Wi-Fi Black/White list | |
| Enviornment | Operating Temperature | Normal:0°C ~ 45°C (Performance will be limited when Temp >30℃) |
| Storage Temperature | -20°C ~ 60° C | |
| Humidity | 5%~ 95% |
