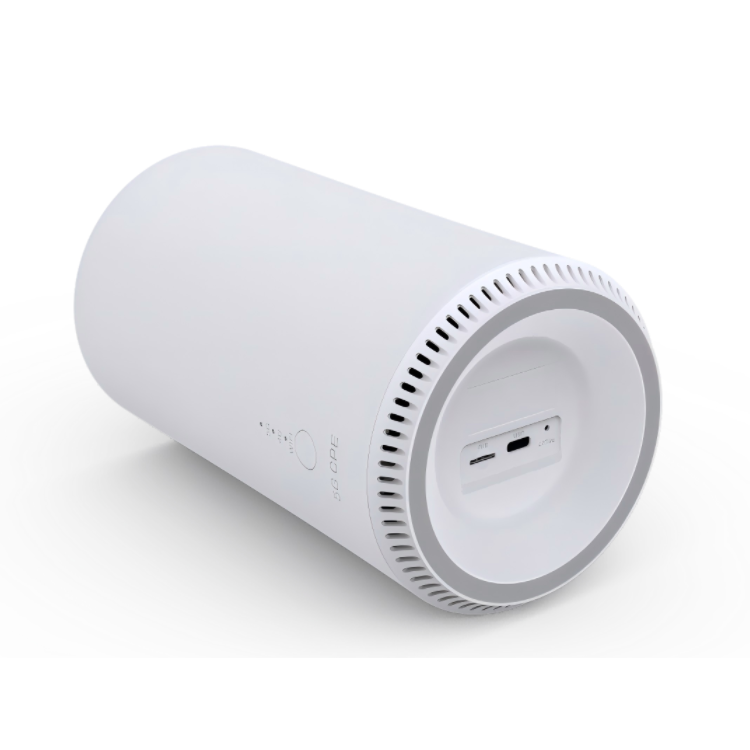

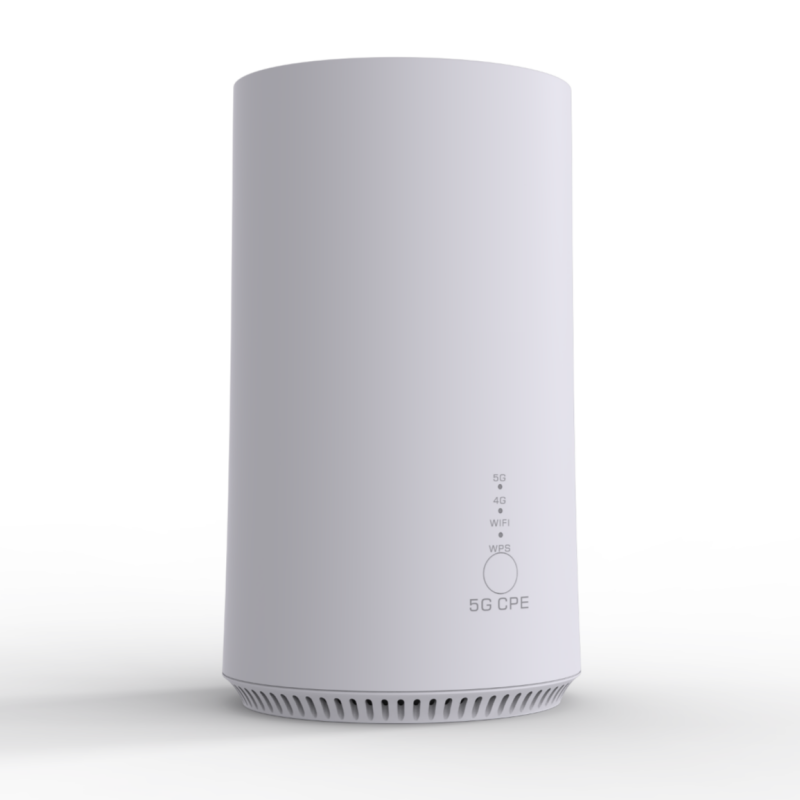

HL-850M 5G Router

BB Chipset: MTK T750 Chipset
Dual Band WiFi
2*RJ45 +1*RJ11 Voice port(optional)
Supports WiFi6 3000Mbps
NSA sub6: DL 4.67Gbps; UL 2.5Gbps
SA sub6: DL 3.74Gbps; UL 1.46Gbps

Wireless 5G indoor WiFi6 AX3000 router supports 2pcs RJ45 Ethernet ports.

High quality 5G pure MTK Chipset CPE with sim card slot.
Smart dual band Honlly 5G internet SA/NSA with 5G bands N77/N78/N79.

Product name HL-850M
Cellular feature
3G/4G/5G data connectivity It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and UMTS networks.
Frequency bands
• Version E
5G NR:
5G Sub-6: n1/3/5/7/8/20/28(a&b)/38/40/41/77/78/79
LTE FDD: B1/3/5/7/8/18/19/20/26/28(a&b)/32
LTE TDD: B38/40/41/42/43
LAA: B46
WCDMA: B1/5/8
5G NR: DL 4×4 MIMO: n1/3/7/38/40/41/77/78/79
UL 2×2 MIMO: n41/77/78/79
LTE: DL 4×4 MIMO:B1/3/7/32/38/40/41/42/43
  Version NA
5G NR:
5G Sub-6: n2/5/7/12/14/25/30/41/48/66/71/77/78
LTE FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71
LTE TDD: B41/48
LAA: B46
WCDMA: B2/4/5
5G NR: DL 4×4 MIMO: n2/7/25/30/41/48/66/77/78
UL 2×2 MIMO: n41/77/78
LTE: DL 4×4 MIMO:B2/4/7/25/30/41/48/66
Remarks. More frequency bands or requirements please contact with us.
3G/4G/5G  Data rates ◆ NR Sub6: 256QAM / Peak data rate DL 4.67Gbps /UL  1.25Gbps
◆ LTE 256QAM / Peak Rate DL 1.6Gbps  (CAT19)/ UL 211Mbps (CAT18)
◆ DL DC-HSPA+: 42Mbps (CAT24)/UL 11.5 Mbps (CAT7)
◆ DL UMTS: 384kbps/UL 384 kbps
5G NR features ◆ 3GPP Release 15
◆200MHz 2 DLCA, 256 QAM
◆200MHz 2 ULCA, 256 QAM
◆15KHz/30KHz SCS for FDD/TDD
LTE features ◆ 3GPP Release 15
◆ 100MHz 5 DLCA, 256 QAM
◆ 40MHz 2 ULCA, 256 QAM
UMTS features ◆ 3GPP Release 8
Transmitting Power
◆ Class 3 (24dBm±1.5dB) for WCDMA bands
◆ Class 3 (23dBm±2dB) for LTE-FDD bands
◆ Class 3 (23dBm±2dB) for LTE-TDD bands
◆ Class 3 (23dBm±2dB) for NR bands
◆ Class 2 (26dBm±2dB) for NR N41/77/78/79
◆ Class 1.5 (29dBm±2dB) for NR N41/77/78/79
Antennas 4 * 4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance.
SIM card feature
SIM  card Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )
Hardware feature
CPU MTK T750 Chipset+ Quad-core ARM Cortex-A55 up to 2GHz
WiFi Chipset MT7916 Chipset+ MT7976 Chipset
Hardware interface 1*GE WAN/1*GE LAN  ports.  1*USB3.1 port, 1*RJ11  VOLTE (Optional)
Watchdog Built-in watchdog feature.
Key button Reset
