| Product Type |
5G NR Outdoor CPE / 5G ODU |
| 5G Mode |
5G NR SA & NSA |
| 3GPP Release |
Release 16 |
| 5G NR Bands |
n1 / n3 / n5 / n7 / n8 / n20 / n28 / n38 / n40 / n41 / n77 / n78 |
| LTE FDD Bands |
B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32 |
| LTE TDD Bands |
B38 / B40 / B41 / B42 / B43 |
| WCDMA Bands |
B1 / B5 / B8 |
| 5G NSA Speed |
Up to 5.47 Gbps DL / 825 Mbps UL |
| 5G SA Speed |
Up to 4.67 Gbps DL / 1.25 Gbps UL |
| LTE Speed |
Up to 1.6 Gbps DL / 211 Mbps UL |
| 5G Carrier Aggregation |
Up to 200 MHz, 2 DL CA / 2 UL CA |
| LTE Category |
DL Cat 19 / UL Cat 18 |
| LTE Carrier Aggregation |
Up to 5 DL CA / 2 UL CA |
| 5G Modulation |
DL/UL up to 256QAM |
| 5G MIMO |
DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78; UL 2×2 MIMO: n40/n41/n77/n78 |
| LTE MIMO |
DL 4×4 MIMO: B1/B3/B7/B28/B32/B38/B40/B41/B42/B43 |
| Cellular Antennas |
4 × Internal 4G/5G Antennas, 4×4 MIMO |
| SIM |
1 × Nano SIM (4FF) or 1 × eSIM |
| CPU |
ARM Cortex-A55 Quad-Core, up to 2.0 GHz, UNISOC V620 |
| Ethernet |
1 × 2.5GbE LAN Port |
| USB |
1 × USB 2.0 |
| Power Supply |
PoE, DC 20V/1A to 48V/0.5A |
| Operating System |
OpenWRT |
| Remote Management |
TR-069 / TR-181 |
| Firmware Upgrade |
Local WebUI & Remote OTA/FOTA |
| Network Features |
Multiple APN, NAT, Port Mapping, Static Routing, Firewall |
| Ingress Protection |
IP65 |
| Operating Temperature |
-30°C to +70°C |

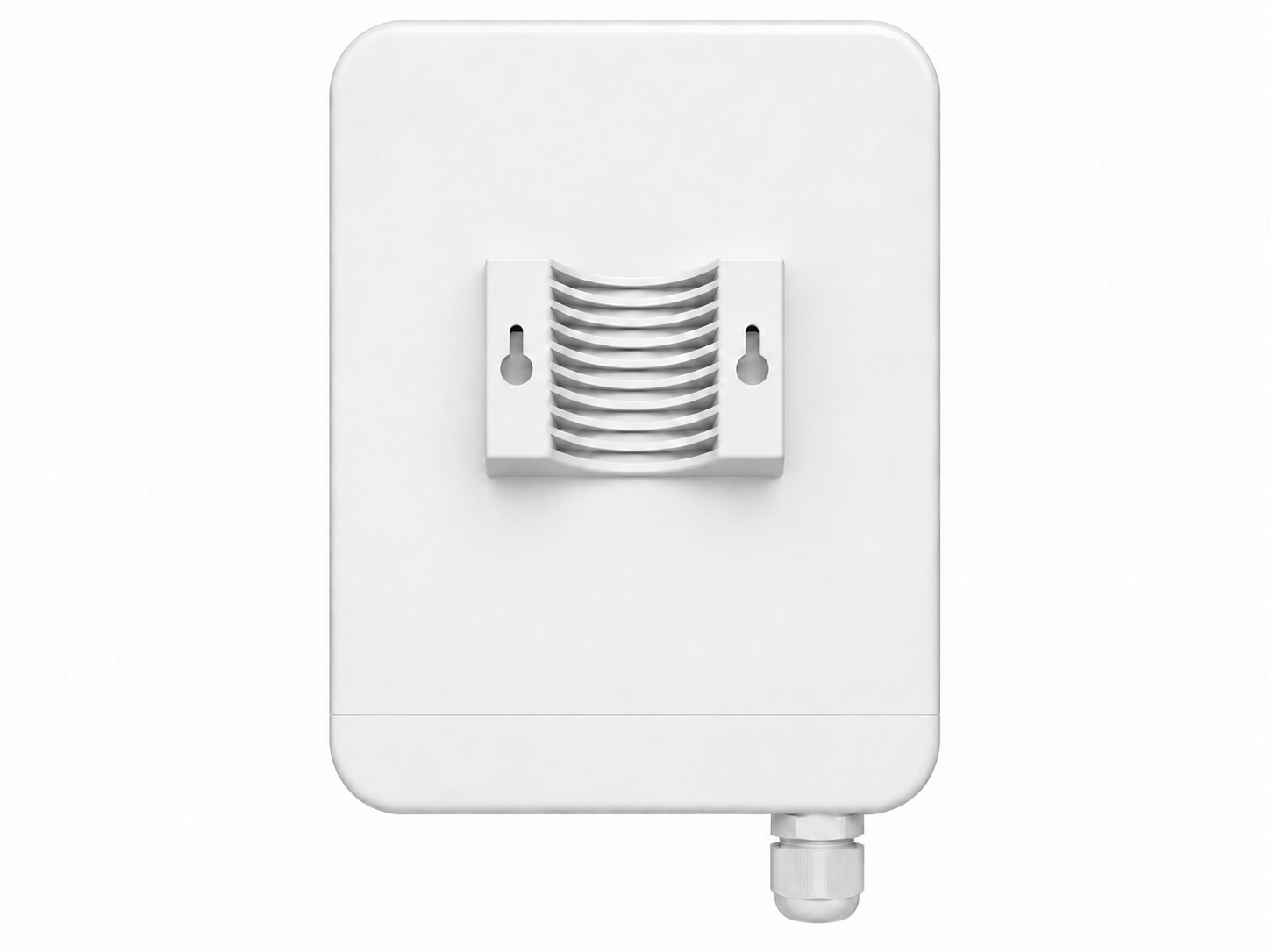

| Installation |
Wall Mount / Pole Mount |
| Dimensions |
190mm * 141mm *40mm |
| Weight |
480 g |
