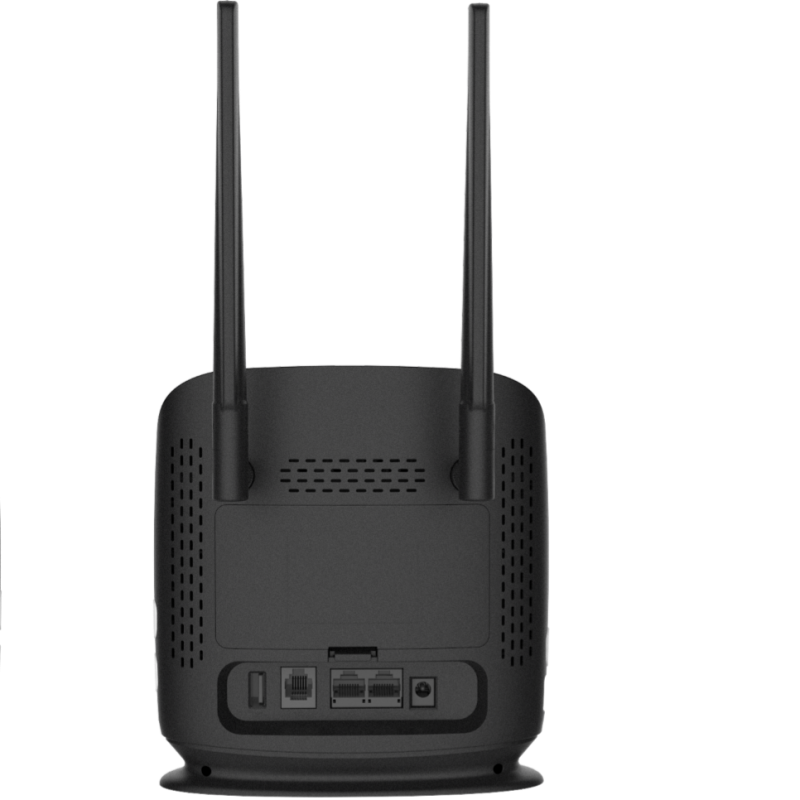

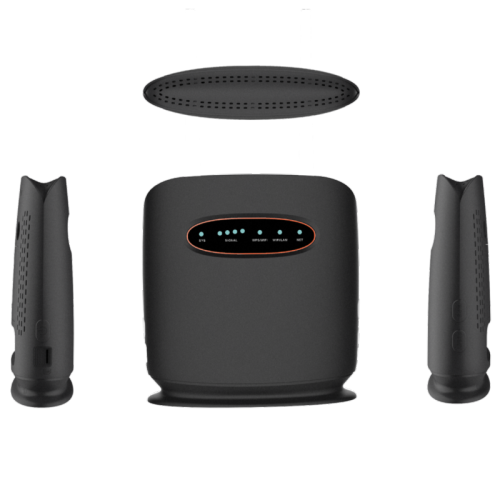

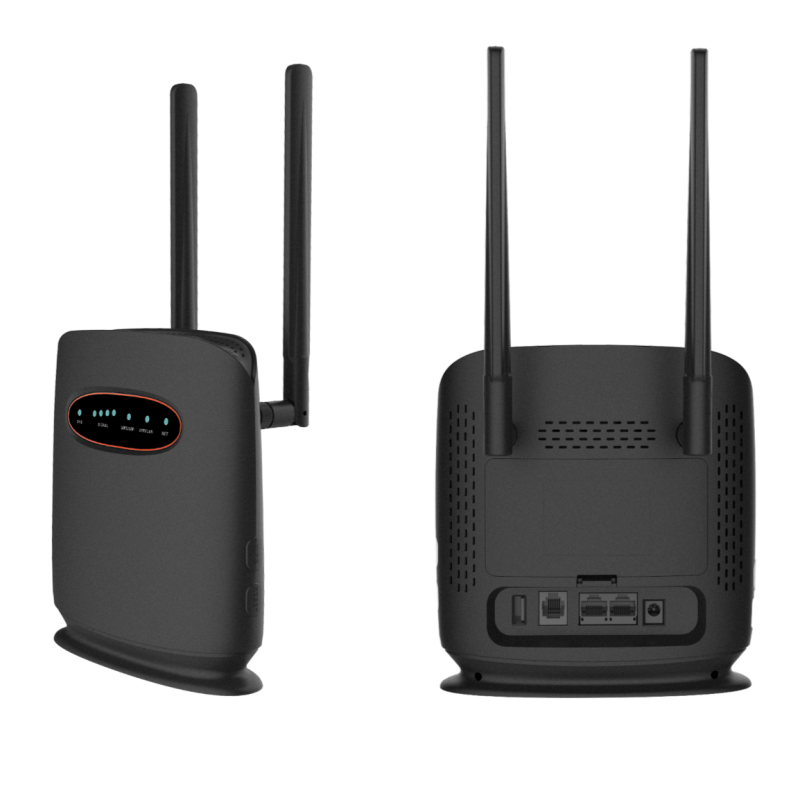

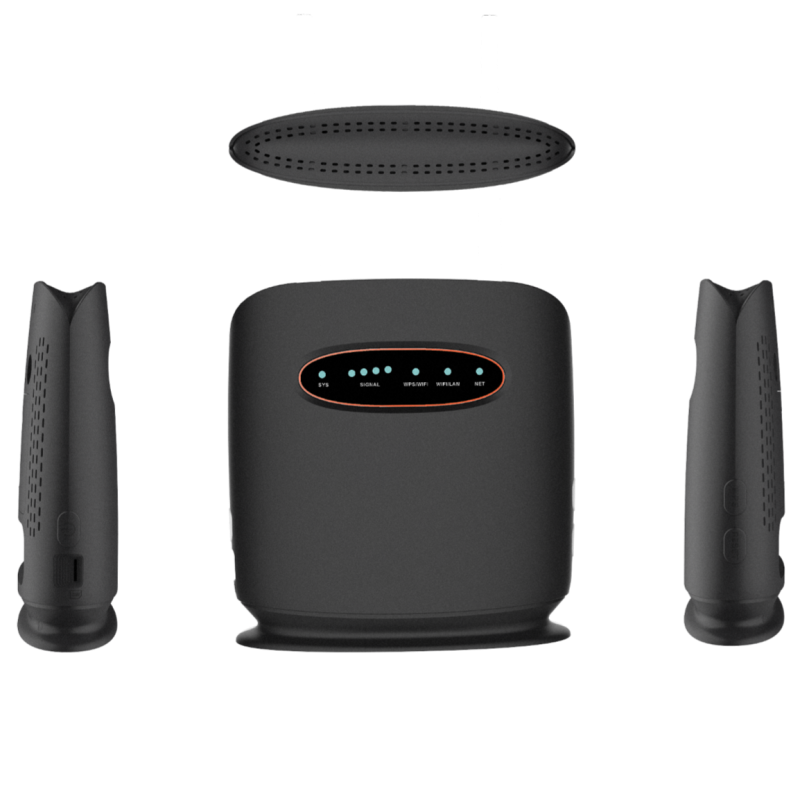

HL-620 CAT6 CPE

Chipset: Qualcomm SDX12
CAT6 300Mbps
2.4G&5G Dual Band WIFI: MIMO2x2
2xRJ45 Ethernet ports
1xRJ11 Voice ports
Support 4000mAh Lithium Battery
Description
Description

High speed CAT6 LTE Qualcomm SDX12 router support 1 pc RJ11 voice port.
1200Mbps 4G modem router supports sim lock, DMS and dos attack.
300Mbps 4G dual band WiFi box with 2pcs RJ45 Ethernet ports.

Category Feature & specification Description
Basical Information Model Name HL-620
Form Factor CPE
Dimension 176mm*155.2mm*49mm
Weight 400g
Color White /Black
Air Interface Technical Standard Compatible with FDD/TDD-LTE, WCDMA,
802.11 b/g/n/ac DBDC
Frequency LTE FDD:B1/3/5/7/8/20/28/32
LTE TDD:B38/40/41/42/43
WCDMA:1/3/5

CA:
B1 + B1/B3/B5/B8/B20/B28;
B3 + B3/B5/B7/B8③/B20/B28;
B7 + B5/B7/B8/B20/B28;
B38 + B38; B40 + B40; B41 + B41

WCDMA: B1/B5/B8
WIFI 2.4&5 GHz, WIFI 2*2 MIMO802.11 b/g/n/ac DBDC
Performance Maximum Data Throughput LTE CAT 7
FDD-LTE(DL/UL) 300Mbps/100Mbps
TDD-LTE(DL/UL) 223Mbps/40.8Mbps
DC-HSPA+ (DL/UL) 42/5.76Mbps
Hardware Receive Diversity Support Receive Diversity
MIMO Support LTE 4*4 MIMO or2*2 MIMO+CA
BB Chipset Qualcomm SDX12
AP+WIFI Chipset MT7621A+MT7603+MT7613
Memory Modem:512MB+256MB
AP:32MB
power consumption <12W
Power Voltage DC12V/1.2A
USIM/SIM 4FF SIM card
LED  Power Indication LEDSYS),WAN Signal Strength(RF) WiFi/WPS Indication LED(WIFI) WAN/LAN Status LED(ETH)Internet Status LED(NET),
USB USB2.0
Antenna  2*LTE  Internal2*WIFI Internal , 2*LTE External option
Buttons POWERReset,WPS
Power: CPE should send the  information to network when the CPE is Powered off.
Slic SI32185
Ethernet 1WAN+1LAN, 10BaseT/100Base/1000Base automatic adaptive port
RJ11 1pcs RJ11
Reset Pinhole
ESD ESD Protection circuitContact±8KVAir±10KV
Software SW Update TR069 & Local Update
WIFI Mode  AP Only
WIFI Security OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
SMS     Support
Voice VoLTE & CS Domain voice
AGPS Not Support
IPv4 Support IPv4
IPv6 Support IPv6
Firewall Mac/IP address filter, Port forwarding, WiFi Black/Whilte list
ALG: SIP(must)/RSTP(optional)
Data Statistics Support
VPN Pass Through PPTP/L2TP/IPSec
SIM Lock Support
TR069  Support
Fota Support
SNTP Support
DOS ATTACK Support
DMZ Support
HTTP Support
HTTPS Support
Certification Certification Depends on customization, cost related
Environment Operating Temperature Normal:0°C to +45°C;
Storage Temperature -20° C  to +70° C
Humidity 5%~ 95%
