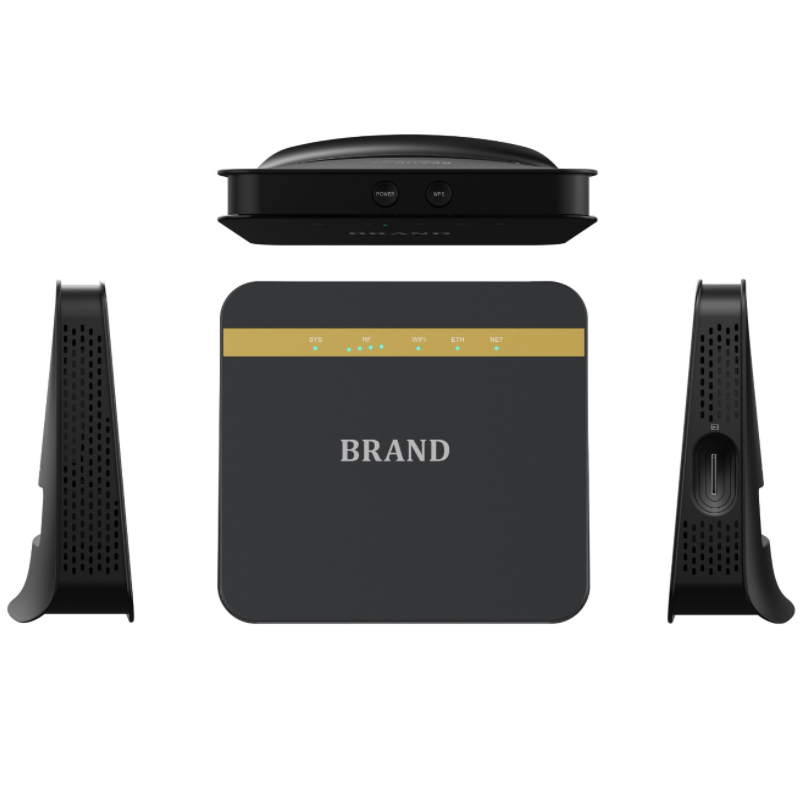

HL-570 customized 150Mbps telecom 4G router for indoor using.
Wireless RTL 8192 WiFi chipset 4G broadband router provides VoIP, VoLTE, CS VoIP option.
Qualcomm 9207 chipset 4G VOLTE CPE support TR069 upgrade.
| Category | Feature & specification | Description |
| Basical Information | Model Name | HL-570 4G CPE |
| Form Factor | CPE | |
| Dimension | 156*125*38mm | |
| Weight | 600g | |
| Color | White/Black | |
| Air Interface | Technical Standard | Compatible with FDD-LTE 802.11 b/g/n |
| Frequency | LTE TDD B41 Can switch module to cover more frequencies combinations |
|
| WIFI | 2.4GHz, WIFI 2*2 MIMO，802.11 b/g/n | |
| Performance | Maximum Data Throughput | LTE CAT 4 FDD-LTE 150Mbps/50Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO | |
| BB Chipset | Qualcomm MDM9207 | |
| RF Chipset | Qualcomm WTR2965 | |
| WiFi Chipset | RTL8192 | |
| Memory | 2Gb+2Gb | |
| Battery | 4000mA | |
| power consumption | <12W | |
| Power Voltage | DC12V/1A | |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal |
|
| LED | Power Indication LED，WAN Signal Strength， WiFi/WPS Indication LED， WAN/LAN Status LED，Internet Status LED, | |
| Antenna | Internal Antenna only | |

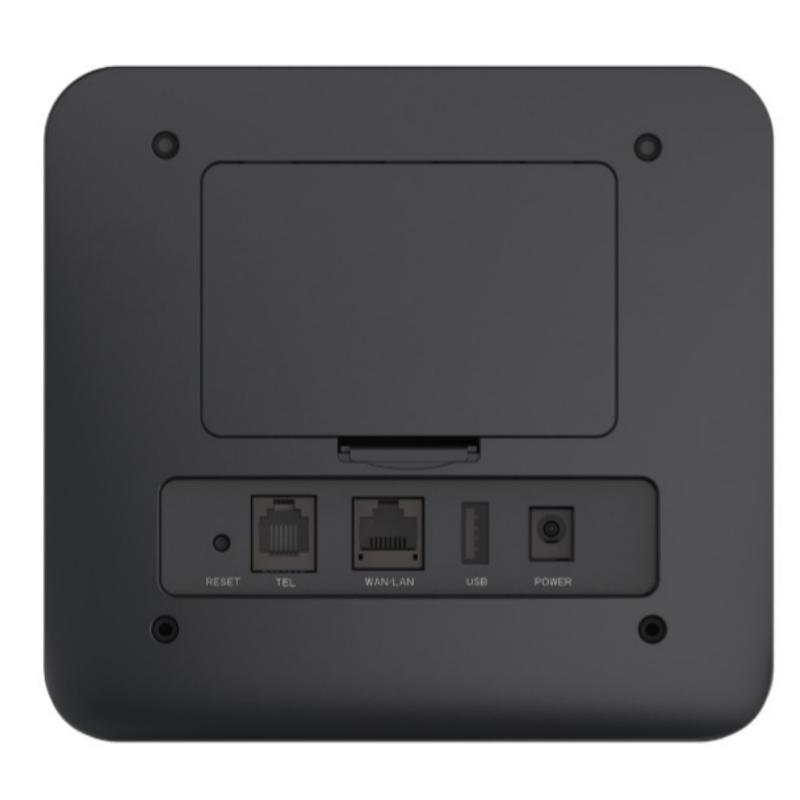

| USB | 1*USB2.0 | |

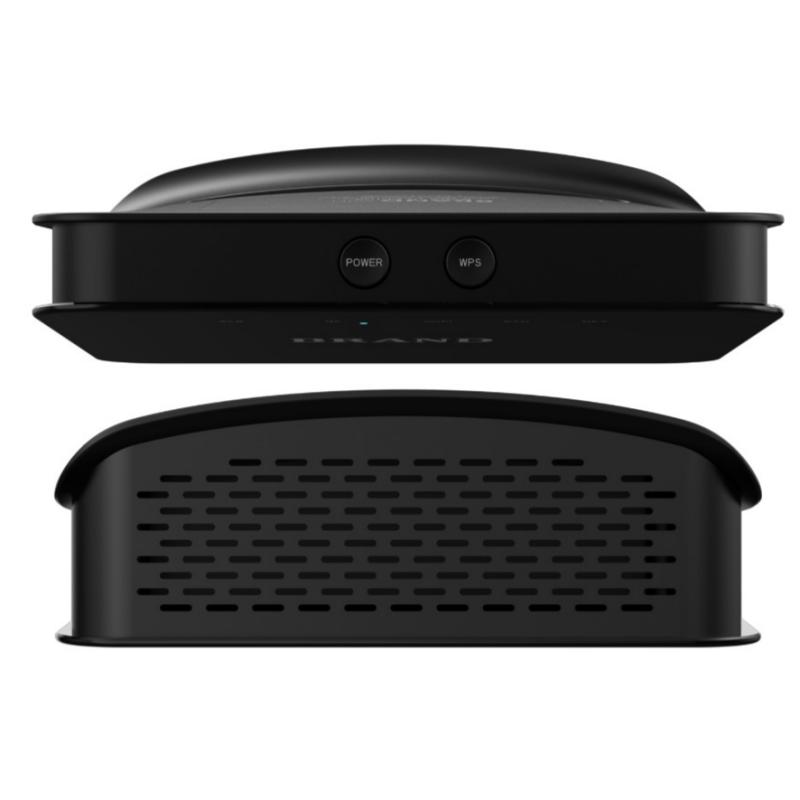

| Buttons | POWER，Reset,WPS | |
| Ethernet | 1WAN/LAN Port, 10BaseT/100Base/1000Base automatic adaptive port | |
| Reset | Pinhole | |
| ESD | ESD Protection circuit；Contact±6KV、Air±10KV | |
| Software | SW Update | TR069 & Local Update |
| WIFI Mode | AP mode only | |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| SMS | Not Support by default, can be customized | |
| Voice | 1RJ11, Support VoIP , VoLTE ,CS VoIP as Optional | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| Data Statistics | Support | |
| VPN Pass Through | PP2P/L2TP/IPSec | |
| SIM Lock | Support | |
| HTTP | Support | |
| Certification | Depends on customization, cost related | |
| Environment | Operating Temperature | Normal:0°C to +45°C; |
| Storage Temperature | -10° C to +60° C | |
| Humidity | 5%~ 95% |
