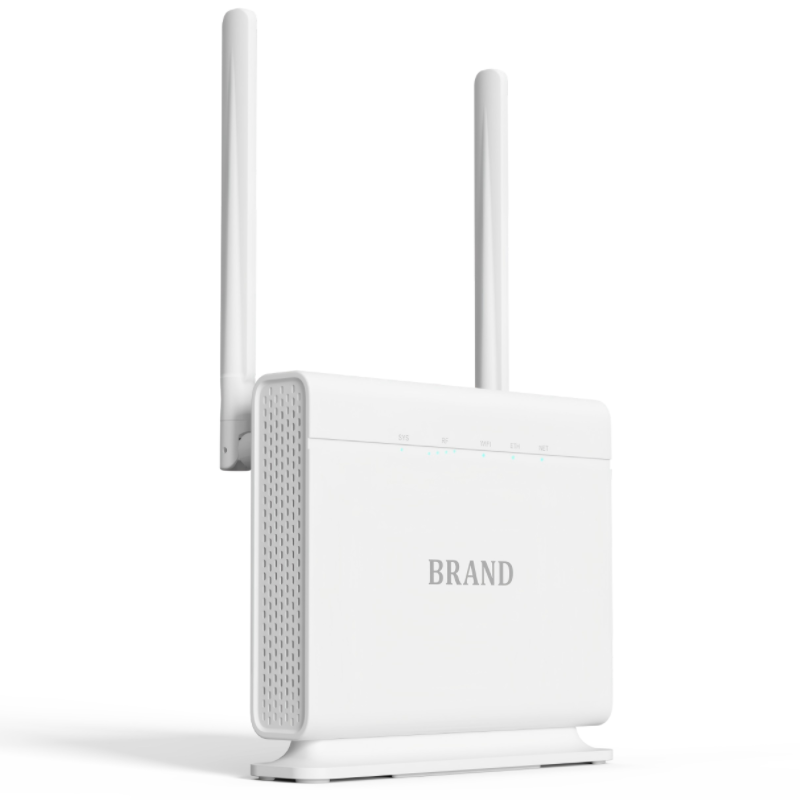

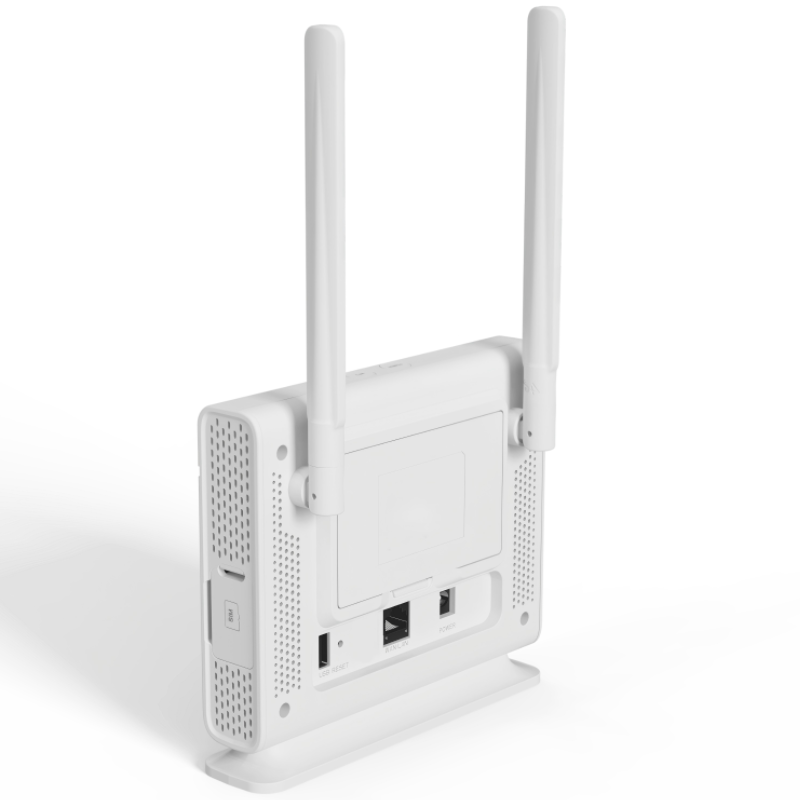

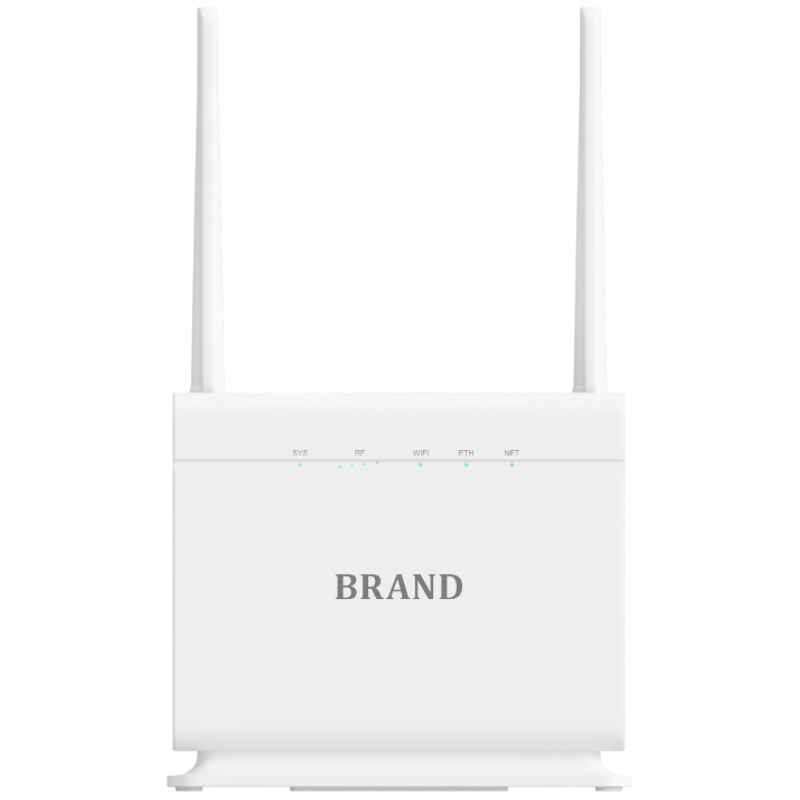

HL-560Z LTE CPE

Chipset: ZTE 7520V3
CAT4 150Mbps
LTE Router
2.4G WIFI: MIMO2x2
1xRJ45 Ethernet port
1xRJ11 Voice port (Optional)
Support 4000mAh Lithium Battery
Description
Description

HL-560Z is Realtek 8192ES WiFi Chipset telecom LTE CPE with 1pc RJ45 WAN/LAN Ethernet port.
Low cost 4G desktop router with parent mode and FOTA upgrade.
150Mbps mobile 4G router with 4000mAh internal battery in case of power outages.

Category Feature & specification Description Customer Comments
Basical Information Model Name HL-560Z
Form Factor CPE
Dimension 156*125*38mm
Weight 600g
Color White
Air Interface Technical Standard Compatible with FDD/TDD-LTE, UMTS, EDGE/GPRS/GSM
802.11 b/g/n
Frequency LTE :1/2/3/5/7/8/28(20)/40 or  2/4/5/7/28(20)/66/40
UMTS: 1/2/5/8
GSM: 850/900/1800/1900MHz
Frequencies can be Customized
WIFI 2.4GHz, WIFI 2*2 MIMO802.11 b/g/n
Performance Maximum Data Throughput FDD-LTE  (CAT 4): Max 150Mbps(DL)/50Mbps(UL)
TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL)
Transmit Power FDD-LTE 23±2.7dBm;
TDD-LTE 23±2.7dBm;
Hardware Receive Diversity Support Receive Diversity
MIMO Support DL 2x2 MIMO
BB Chipset ZX297520V3
RF Chipset ZX234220A1
WiFi Chipset RTL 8192ES
Memory Flash: 128MBytes   RAM: 64MBytes
power consumption <12W
Power Voltage DC12V/1A
USIM/SIM 2FF SIM card
support SIM/USIM/UIM,standard 6 PIN SIM card interface,
support 3V SIM card and 1.8V SIM card;internal
push-push SIM slot
LED  Power Indication LEDWAN Signal Strength WiFi/WPS Indication LED WAN/LAN Status LEDInternet Status LED
USB USB 2.0
Antenna  Internal Antenna or external
Buttons POWERReset, WPS
Slic SI32185 Optional, Cost related
Ethernet 1WAN/LAN, 10BaseT/100Base automatic adaptive port
RJ11 RJ11x1 Optional, Cost related
Reset Pinhole
ESD ESD Protection circuitContact±8KVAir±10KV
Battery Optional can support 4000mAh battery
Software SW Update TR069 &FOTA Update
WIFI Mode AP mode only,  AP+STA is Optional
WIFI Security OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
SMS & Phone Book Support
USSD Support
USB Function Default no USB port, can be customized
Voice VoLTE Optional, Cost related
IPv4 Support IPv4
IPv6 Support IPv6
IPv4v6 Support IPv4v6
Firewall Mac/IP address filter, Port forwarding, WiFi Black/Whilte list
Data Statistics Support
SIM Lock Support
WAN Fallback to ETH Automatically
WeUI Support
Language English by default, can be customized.
HTTP Support
Certification Depends on customization, cost related
Environment Operating Temperature Normal:-10°C to +65°C;
Storage Temperature -20° C  to +85° C
Humidity 5%~ 95%
