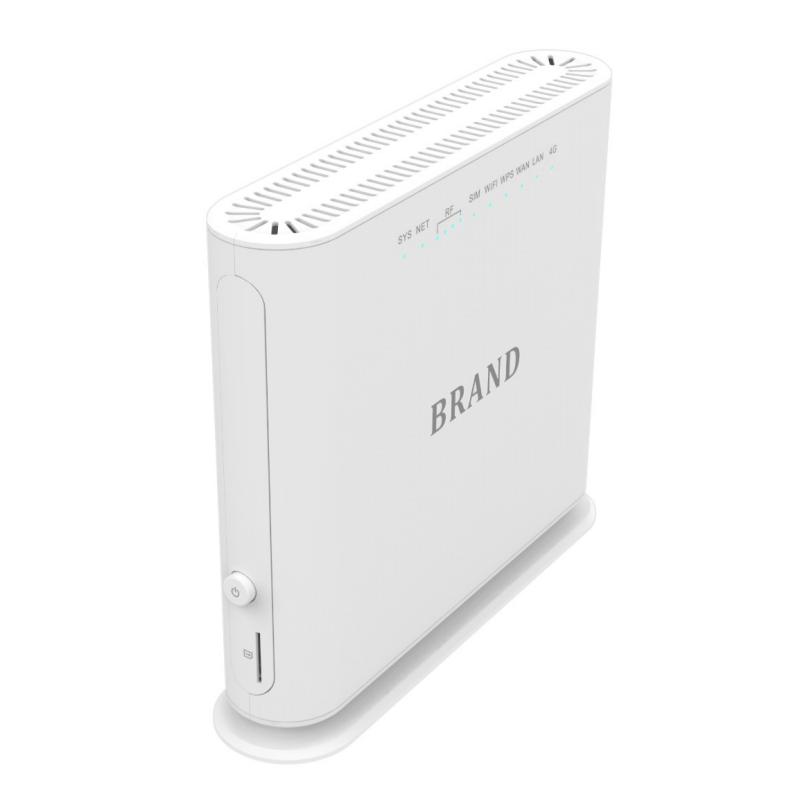

HL-550 is a high-performance 150Mbps 4G router for household and commercial use.
It adopts Qualcomm9*07 Chipset, a 4G WiFi router that support 4 pcs Ethernet ports and 1 pc RJ11 voice port.
HL-550 is also a CAT4 indoor LTE CPE router with MIMO2x2 2.4GHz WiFi.
| Category | Feature | Description |
| Artwork | Dimensions | 176mm*153mm*44mm |
| Weight | 315g | |
| Form factor | CPE | |
| User manual | Support | |
| Quick guide | Support | |
| Warranty cards | Support | |
| AC adapter | 12V/1.2A | |
| Network cable | 1 cable is included in the package | |
| Solution | Wireless chipset supplier | Qualcomm |
| Baseband | Wireless chipset model | MDM9*07 |
| Routing and WiFi chipset model | MDM9607&RTL8192ES | |
| SLIC | Si32174 | |
| USIM/SIM slot | Standard 6PIN SIM card interface 3V SIM card and 1.8V SIM card |
|
| Memory(SDRAM/NAND) | MDM9207: 512MB Flash+ 256MB DDR | |
| Battery | 4000mAh as option | |

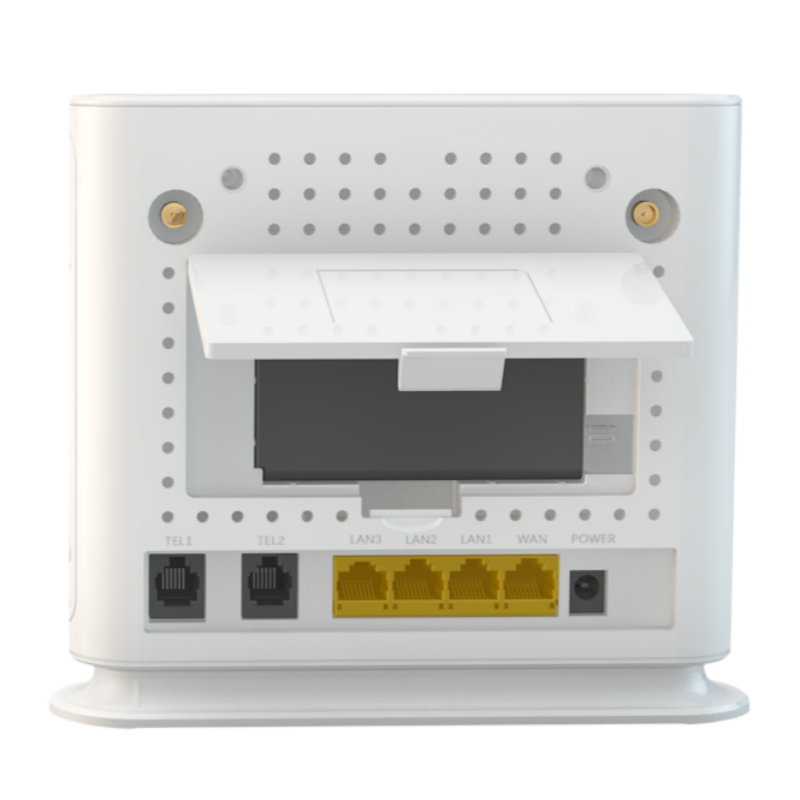

| RJ45 interface | 4 | |
| RJ11 interface | 1~2(optional) | |
| WiFi users access | 32 | |

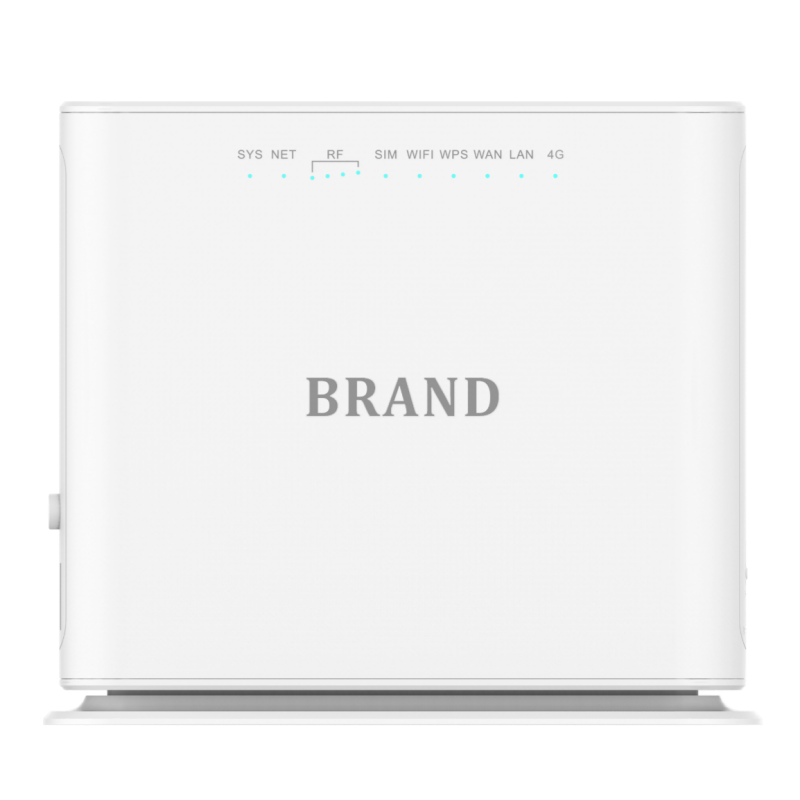

| Power indication LED | ON------Power on; OFF------Power off; |
|
| WIFI indication LED | ON------WiFi function is enabled; OFF------WiFi function is disabled |
|
| Network mode indication LED | ON------Connect to network; Blinking------Dial up(data transfer); OFF------No internet connection; |
|
| WAN signal strength indication LED | ON------Insert ethernet cable and be identified; Blinking------data transfer; OFF------Not plugged in ethernet cable or not be identified; |
|
| LAN status indication LED | ON------Insert ethernet cable and be identified; Blinking------data transfer; OFF------Not plugged in ethernet cable or not be identified; |
|
| RF | Chipset | WTR2965 |
| Main antenna | Internal antenna and External antenna interface | |
| Receive diversity antenna | Internal antenna and External antenna interface | |
| Antenna gain | 5 DBI | |
| UMTS band | Band B1 B8 | |
| LTE band | LTE B1 B3 B5 B7 B8 B20 B38 B40 | |
| MIMO for LTE | LTE DL 4*2 MIMO | |
| transmitter power for wireless | LTE: +20dBm~+23dBm WCDMA: +21dBm~+24dBm |
|
| WiFi band | 2402MHz~2483MHz | |
| MIMO for WiFi | 2 × 2 MIMO | |
| Max. transmitter power for WiFi | 17dBm(Max) in 11b mode 15dBm(Max) in 11g mode 14dBm(Max) in 11n mode |
|
| Technical standard | GSM/EDGE/WCDMA | GPRS: Multi-slot Class 10 EDGE: Multi-slot Class 12 WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps |
| HSDPA/HSUPA/HSPA+/LTE | HSDPA: DL 14.4Mb/s(Category 10) DL 21Mb/s(Category 14) DL 42Mb/s(Category 24) HSUPA: UL 5.76Mb/s(Category 6) LTE FDD(Category 4): DL 150Mb/s UL 50Mb/s |
|
| 3GPP release | LTE Rel 8 (FDD) WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7 HSPA+, Rel 8 DC-HSPA+ |
|
| WiFi standard | 802.11b/g/n | |
| WiFi security | WPA/WPA2 | |
| WPS | PBC(Push Button Config) & station PIN | |
| IP protocols | RFC 791 (IP) | |
| RFC 793 (TCP) | ||
| RFC 768 (UDP) | ||
| RFC 792 (ICMP) | ||
| RFC 826 (ARP) | ||
| RFC 1661 (PPP) | ||
| RFC 1332 (IPCP) | ||
| RFC 1334 (PAP) | ||
| RFC 1994 (CHAP) | ||
| NAT/NAPT | RFC 3022 | |
| Browser | IE | |
| Firefox | ||
| Safari | ||
| Opera | ||
| Chrome | ||
| Router | Port forwarding | Support |
| IP filter | Support | |
| DMZ | Support | |
| UPnP | Support | |
| VPN passthrough | PP2P/L2TP/IPSec | |
| SMS | Support | |
| MMS | Support | |
| USSD | Support | |
| IPV4/IPV6 | Support | |
| DLNA-DMS | Support | |
| Language | English by default | |
| Online Upgrade | support FOTA (upgrade package < 5MB) | |
| HW buttons &switches | Power switch | To power on the device or shut down the power |
| Reset button | To restore factory default configurations | |
| WPS button | To activate the PBC(Push Button Config) function | |
| Certification | CE | Support |
| ROHS | Support | |
| Envionment | Operating temperature | -10 to 65° C |
| Storage temperature | -40 to 70° C | |
| Humidity | 5%~ 95% |
