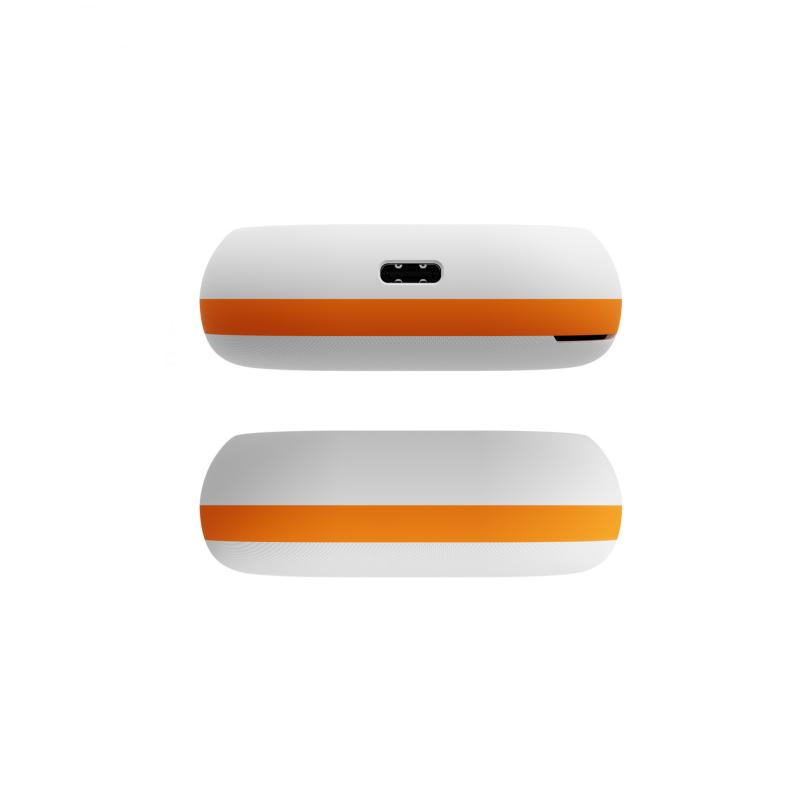

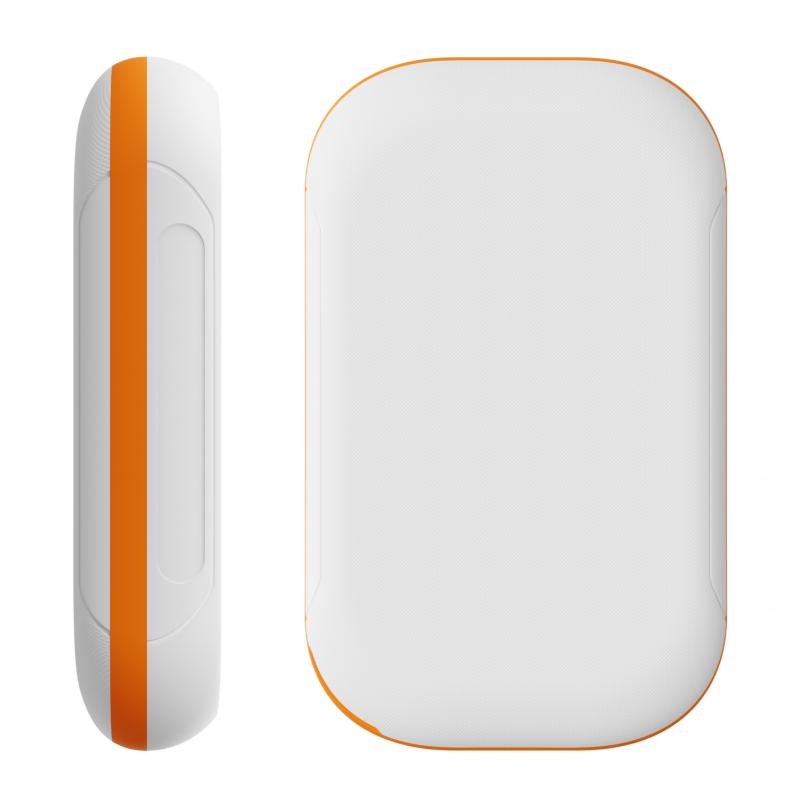

| 4G CAT6 MIFI Specification | ||
| Category | Feature & specification | Description |
| Basical Information | Model Name | HL-540R |
| Form Factor | Mobile WiFi | |
| Color | White/Black | |
| Air Interface | Technical Standard | LTE&WCDMA 802.11 a/b/g/n/ac/ax |
| Frequency | LTE Bands B1,3,5,7,8,20,28,38,40,41 WCDMA Bands: B1,5,8 Can be customized per client's requirements. |
|
| WIFI | 2.4G & 5G WIFI 802.11 a/b/g/n/ac | |
| Performance | Maximum Data Throughput | LTE CAT 6 FDD-LTE 300Mbps/50Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO | |
| BB Chipset | ASR1828 | |
| WiFi Chipset | AIC800DW(2.4G)/AIC8800D40L (5.8G) | |
| Memory | 1Gb+1Gb | |
| T-card | Support | |
| USB Charging | Type-C | |
| USIM/SIM | 4FF SIM card Supports eSIM/VSIM |
|
| Battery | Li-ion Battery 5000mA | |
| Charging time | <3.5 hours | |
| Working time | 8h | |
| Standby time | >60h | |

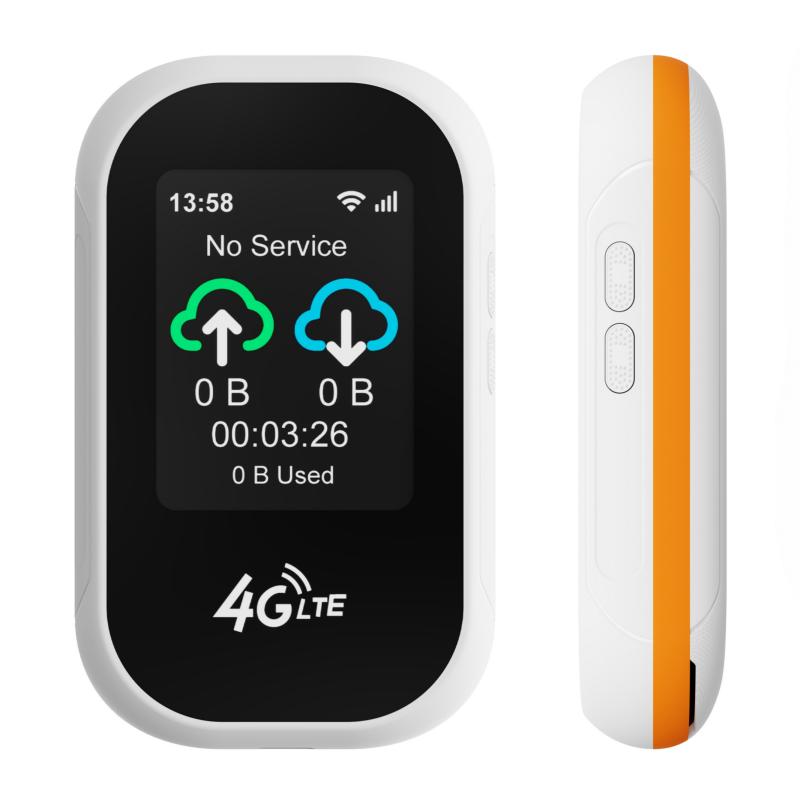

| LCD | TFT LCD , 1.77’’ color LCD, not support touch | |
| USB | Charge & internet | |
| Antenna | 4G: 2X2 WiFi: 2X2 |
|
| Buttons | POWER，Reset, WPS | |
| ESD | ESD Protection circuit, Contact±8KV、Air±10KV | |
| Software | UI | WebUI , Device UI |
| Charge and discharge management of battery | Display on LCD | |
| SW Update | Local Update, Fota | |
| WIFI Mode | only AP mode, Max 16 clients | |
| WIFI Security | OPEN & WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| Data Statistics | Support | |
| SIM Lock | Support | |
| TR069 | Support | |
| SNTP | Support | |
| DOS ATTACK | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Automatic APN matching according to USIM | Support | |
| Environment | Operating Temperature | Normal:-20 ~ 55˚C |
| Storage Temperature | -40 ~ 80˚C | |
| Humidity | 5%~ 95% | |
