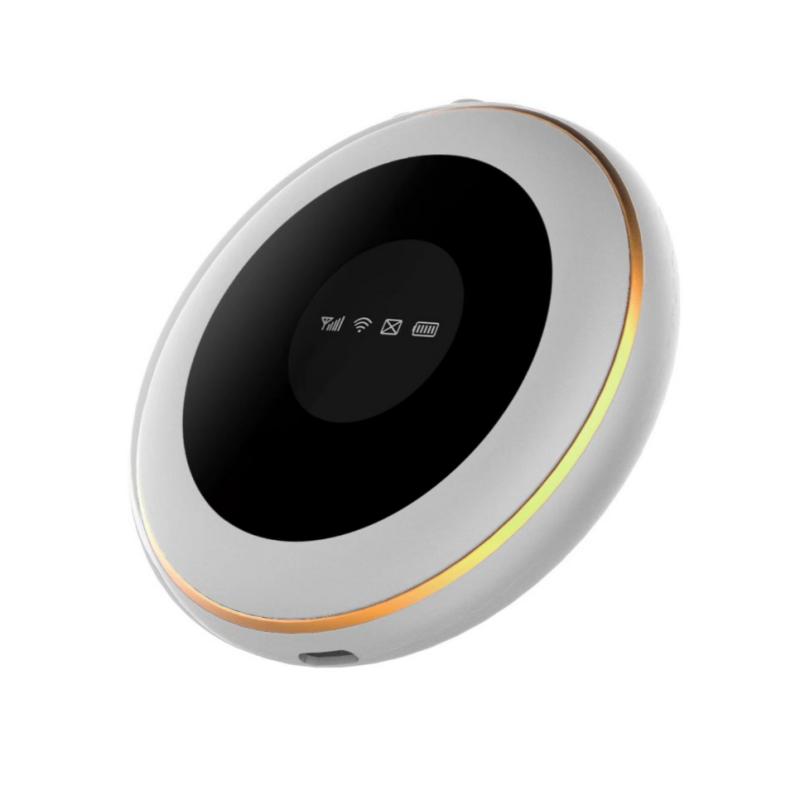

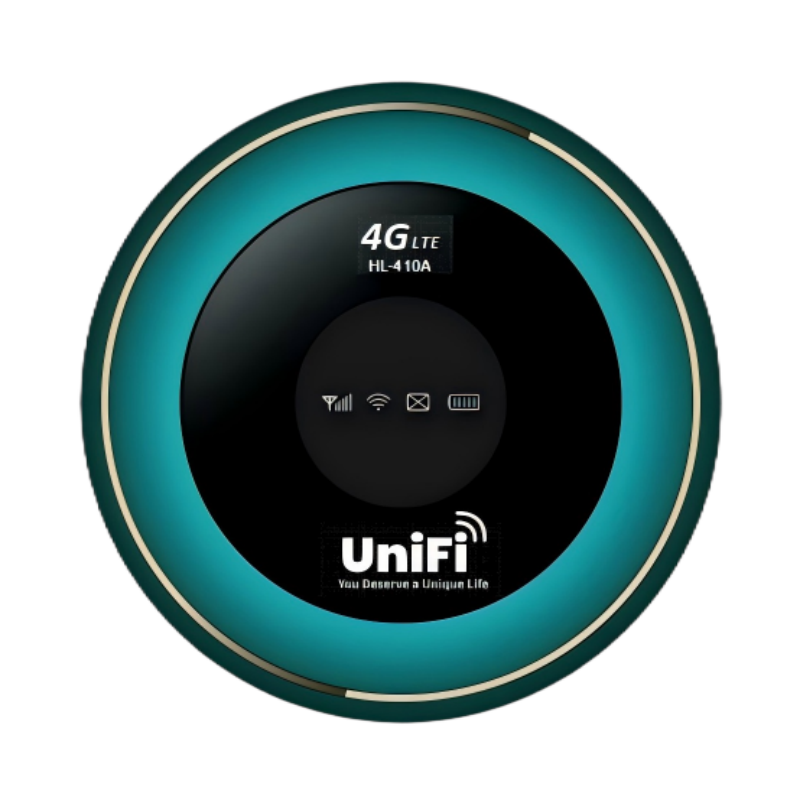

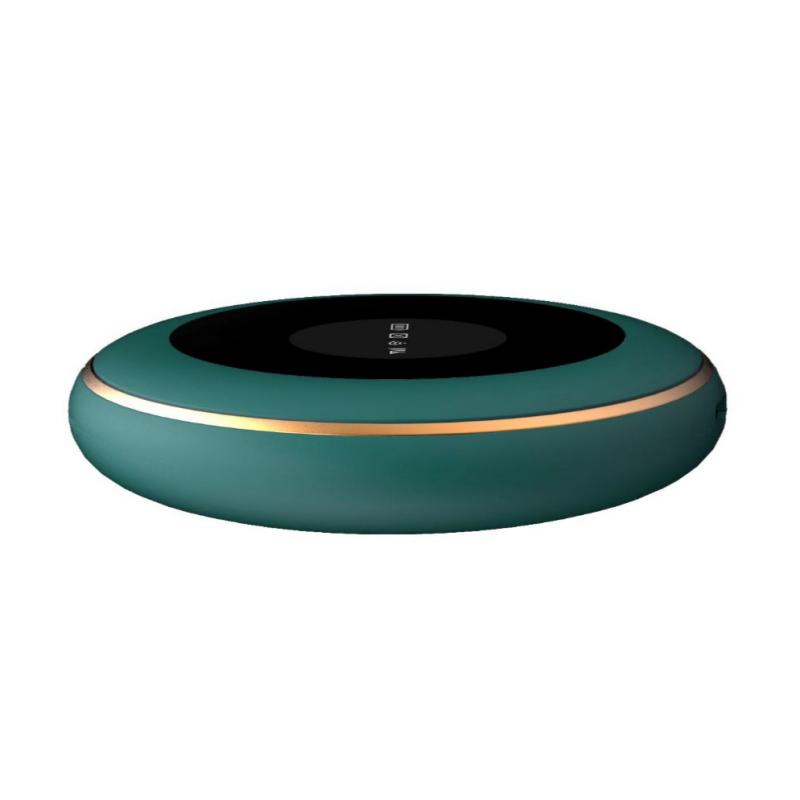

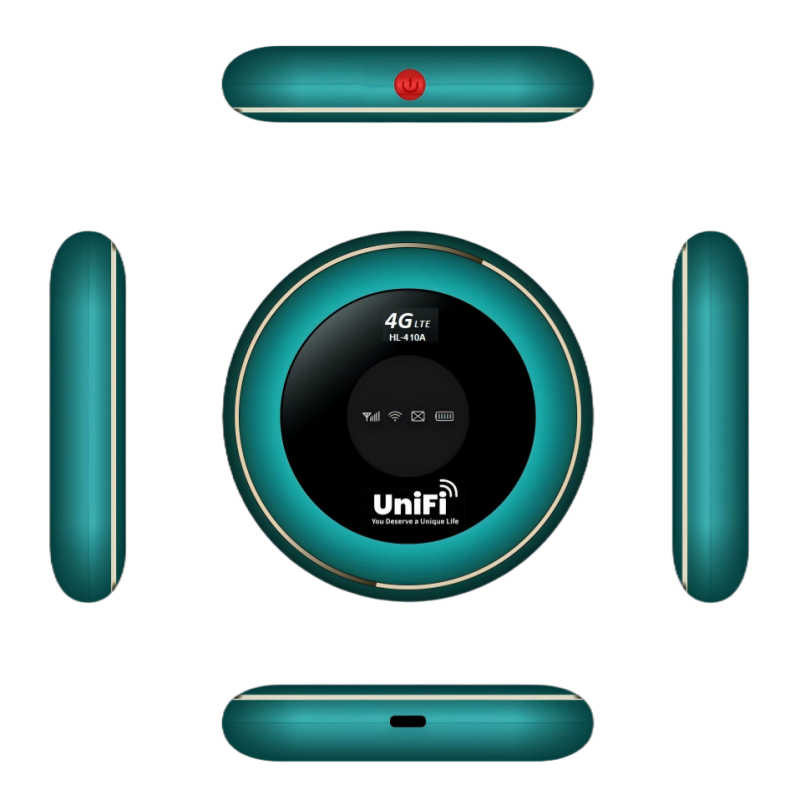

HL-410A stable performance 2.4G WiFi MIMO2x2 router with ASR 1803 chipset.
150Mbps CAT4 LTE mobile WiFi with 3000mAh detachable Li-ion battery for max 16 users.
Mobile 4G mini round pocket MIFI support FOTA upgrade.
| HL-410A 4G CAT4 MIFI Specification | ||
| Category | Feature & specification | Description |
| Basical Information | Model Name | HL-410A |
| Form Factor | Mobile WiFi | |
| Dimension | 96.5mm*62.8mm*16mm | |
| Weight | about 84g | |
| Air Interface | Technical Standard | Compatible with WCDMA, FDD-LTE,TDD-LTE,TDSCDMA,CDMA,GSM 802.11 b/g/n ; |
| Frequency | Support global frequency bands: LTE FDD: B1/B3/B5/B7/B8/B20/B28 TDD: B38/39/40 WCDMA: B1/B5/B8 or LTE FDD: B2/B4/B5/B7/B8/B20/B28 TDD: B41 WCDMA: B2/B4/B5 |
|
| WIFI | 2.4G, WIFI 2*2 MIMO，802.11 b/g/n；channel：1~13 | |
| Performance | Maximum Data Throughput | LTE CAT 4 FDD-LTE 150Mbps/50Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO | |
| BB Chipset | ASR 1803 | |
| WiFi Chipset | SV6158 | |
| Memory | 2Gbit Flash+1Gbit DDR2 | |
| T-card | NA | |
| USB Charging | 5V/2A | |
| USIM/SIM | 3FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal |
|
| Battery | Li-ion Battery 3200mAh | |
| Charging time | <2.5 hours | |
| Working time | >10h | |
| Standby time | >400h | |
| LED | LED Indicator | |
| USB | Charge & internet | |
| Antenna | 4G: Internal PCB, 2 x 2 4G：2*External Antenna mount WiFi: FPC，2*2 |
|
| Buttons | POWER，Reset, Menu | |
| Slic | NA | |
| BT | NA | |
| ESD | ESD Protection circuit, Contact±8KV、Air±10KV | |
| Software | UI | WebUI , Mobile Web UI, Device UI |
| Charge and discharge management of battery | Battery Indicator,Low power management and so on | |
| SW Update | Local Update, Fota | |
| WIFI Mode | AP | |
| WIFI Security | OPEN & WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| SMS | Support | |
| Voice | NA | |
| AGPS | Not Support | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| Data Statistics | Support | |
| VPN Pass Through | PP2P/L2TP/IPSec | |
| SIM Lock | Support | |
| TR069 | Can Customize | |
| SNTP | Support | |
| DOS ATTACK | Support | |
| DMZ | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Automatic APN matching according to USIM | Support | |
| Data Lock | Support | |
| Certification | Depends on customization, cost related | |
| Environment | Operating Temperature | Normal:-10°C to +45°C |
| Storage Temperature | -20° C to +70° C | |
| Humidity | 5%~ 95% | |
